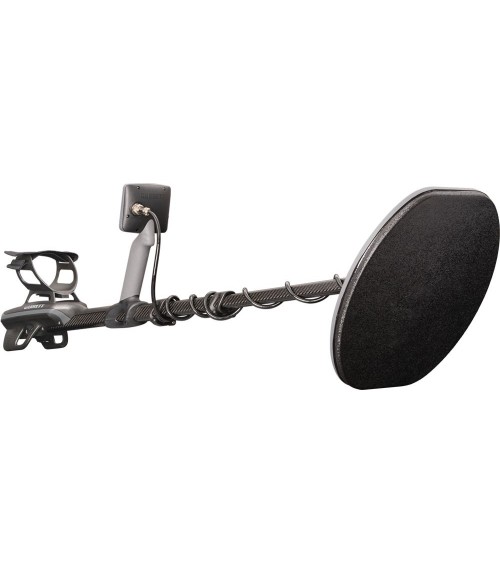

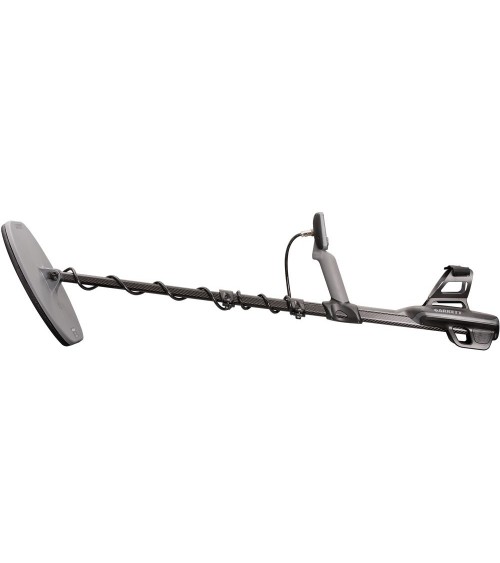

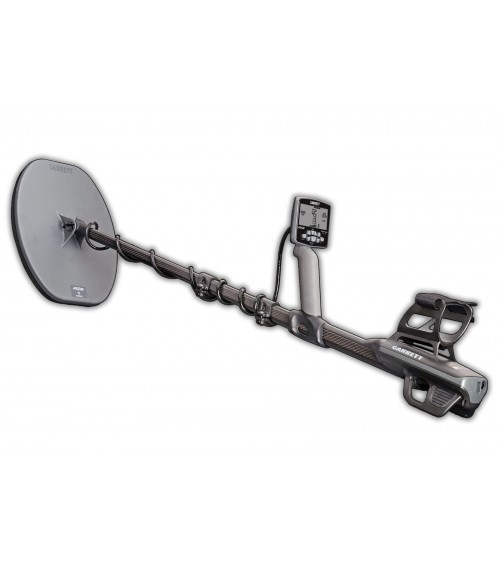

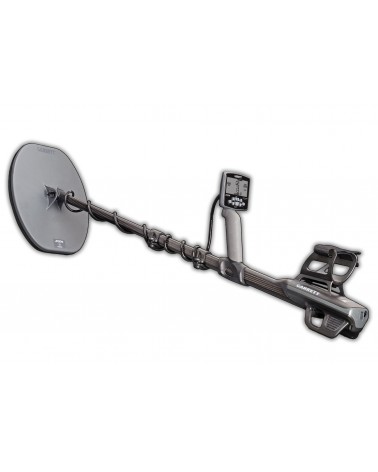

Garrett Axiom

This Axiom package contains an MS-2 headset with 6.3 mm jack plug, a 13 x 11" mono searchcoil and the 11 x 7" DD searchcoil.

Ultra-Pulse Technology

The advanced pulse timings provide increased sensitivity even in extremely mineralized soils and salt water. Choose from four settings, each ideal for searching for all types of gold, from larger nuggets to smaller gold particles. With the Axiom you get absolute versatility

Compact and the lightest detector in its class

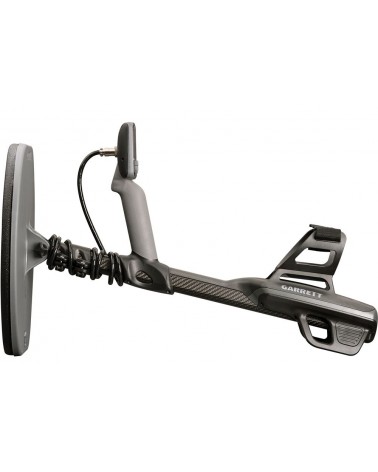

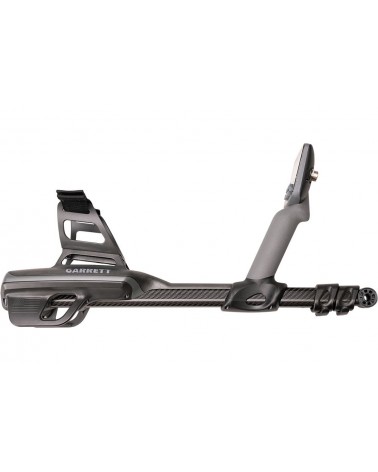

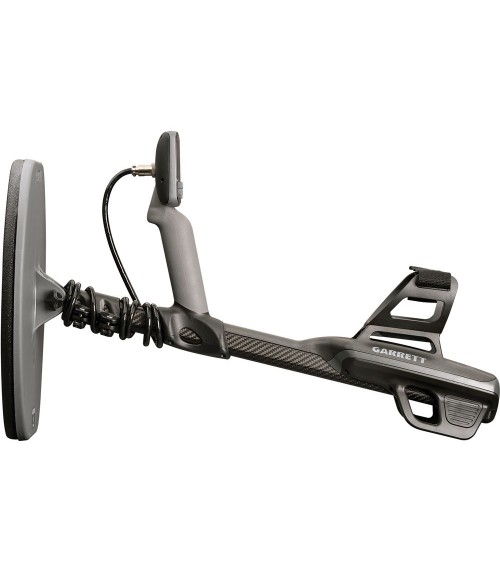

The Axiom can be folded to a length of 63.5 cm, making it ideal for transportation. Thanks to the click lock, you can quickly and easily adjust it to the right length. The maximum length is 156 cm, so it is also suitable for tall people. The total weight is 2.1 kg, making the Axiom one of the lightest high-end gold detectors.

Terra-Scan

Axiom's advanced system provides an independent dual-channel ground balancing function that covers the entire range of mineralization, from highly mineralized, magnetic soils to saltwater and everything in between.

Z-Lynk

The Axiom has a built-in Z-Lynk transmitter that can be used with Garrett MS-3 wireless headphones and all Z-Lynk enabled devices.

Extreme battery life

With approximately 16 hours on a full charge, the Axiom's built-in, powerful lithium-ion battery offers twice the battery life of other gold detectors! The included Axiom Booster Pack has room for 8 AA batteries, either standard or rechargeable. With this pack you can extend the battery life in remote areas by a further 6 hours.

2 audio types

Choose between PWM audio and VCO audio options. PWM audio sounds like the tones of the Garrett ATX. With PWM audio, the volume of the target increases in proportion to the signal strength, but the pitch is fixed to either a high or low tone. With VCO audio, both the volume and pitch of the target increase in proportion to the signal strength. Most users prefer this type of audio because of its smooth response and its ability to sense weak targets that produce faint changes in pitch.

Specifications

Applications: Land , Shallow water , Freshwater beach , Saltwater beach , Highly mineralized soils

Type: Digital , Motion , Non-Motion

Technology: Pulse induction

Search frequency: 1500 pulses per second

Search coil: 28 x 18 cm (11 x 7") waterproof DD search coil, 33 x 28 cm (13 x 11") waterproof monoloop search coil

Weight: 1.9 kg with 11" searchcoil and 2.1 kg with 13" searchcoil

Boom: Telescopic carbon boom adjustable by cam locks from 64 - 156 cm

Waterproof: splash-proof control unit, splash-proof search coil

Headphone connection: 6.3 mm headphone connection

Type and number of batteries: Rechargeable lithium ion, built-in; 76 Wh, 306 g

Battery life: Approx. 16 hours

Depth range of small objects (2 CHF): Approx. 45 cm

Depth range for large objects: Approx. 200 cm

Number of search modes: 4 search modes

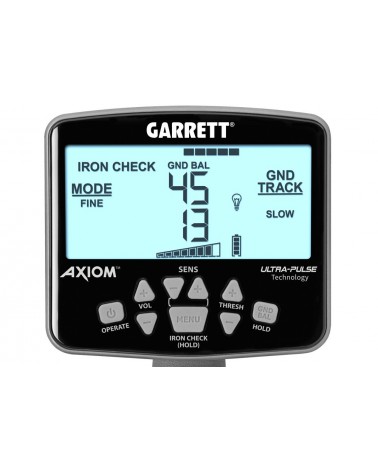

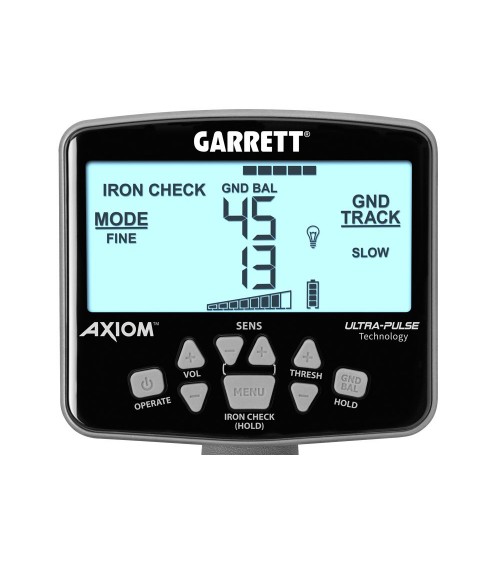

Operation: Push buttons

Built-in wireless module: Yes, Z-Lynk wireless technology

Target group: Advanced, professionals, gold seekers

Battery level readable: Yes, in 4 levels

Depth range readable: Yes, readable signal strength

Bottom mineralization readable: No

Ground adjustment: Automatic and manual ground adjustment and tracking

Sensitivity adjustment: 8 sensitivity levels

Pinpoint function: Yes

Discrimination of unwanted objects: Yes, iron discrimination

Notch filter: No

Notch volume: No

Object identification by audio tones: Yes, extra iron tone for iron identification

Object identification readable: Yes, iron and "valuable"

Conductance display: No

Response speed: Very fast, adjustable in three stages

Volume control: Yes

Display illumination: Yes

Button illumination: No

Search coil illumination: No

Vibration as signal: No

Online software update: Yes

Frequency changer: Automatic interference suppression

Threshold (background tone): Yes, 0 to 25

Multilingual operating software: English only

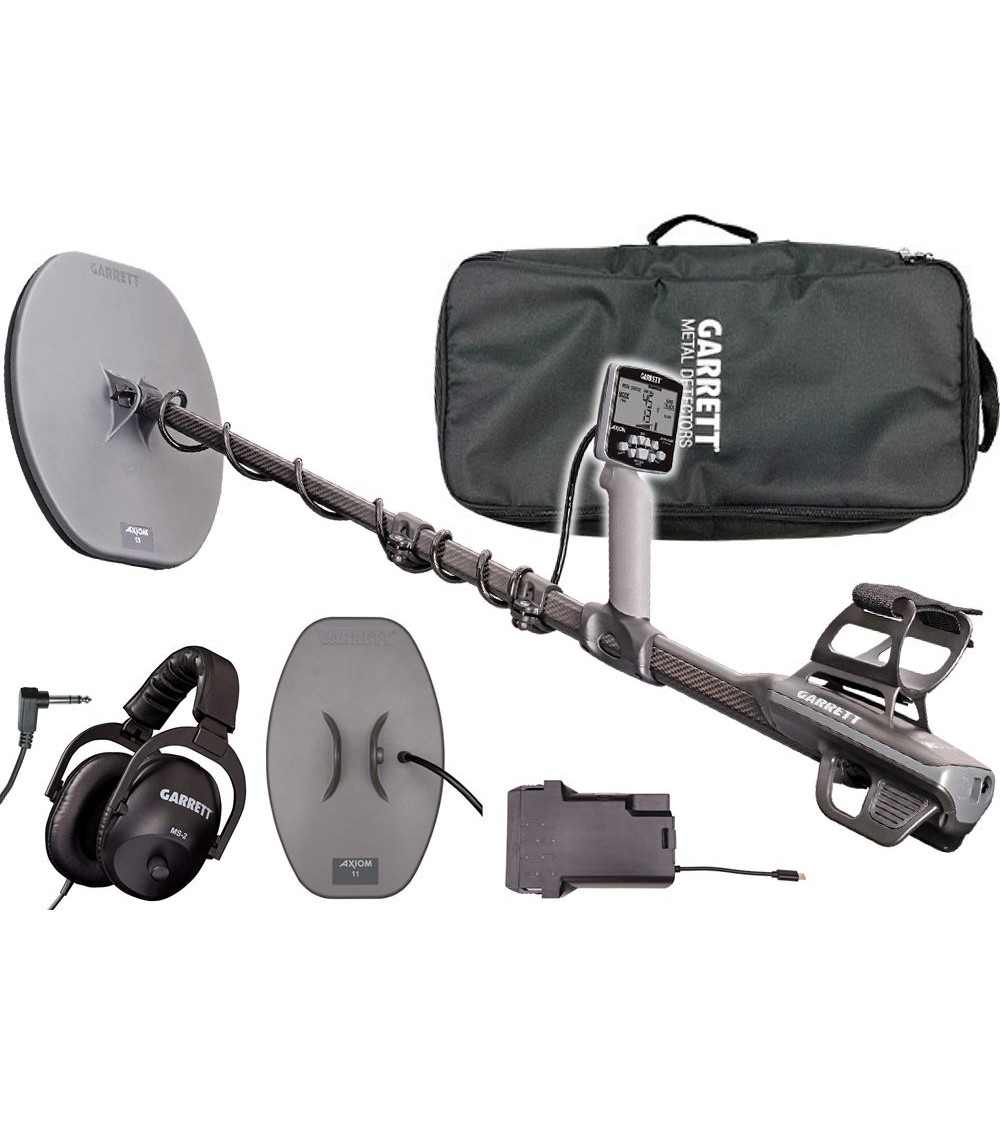

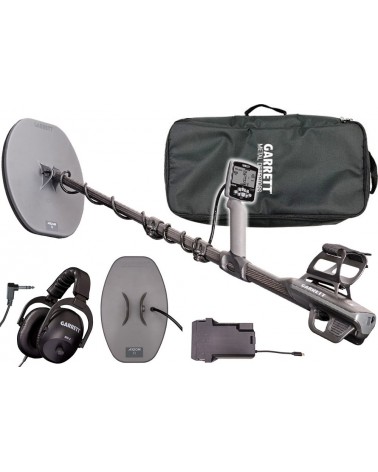

Scope of delivery

Garrett Axiom Metal Detector

Waterproof 13 x 11" mono searchcoil with coil guard

Waterproof 11 x 7" DD searchcoil with coil guard

MS-2 headphones with 6.3 mm jack plug

External battery compartment for 8 AA batteries

Carrying case

Universal plug set

Instruction manual

2 year warranty

1 year additional manufacturer's warranty
