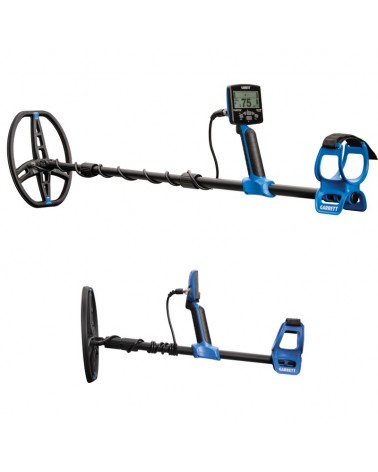

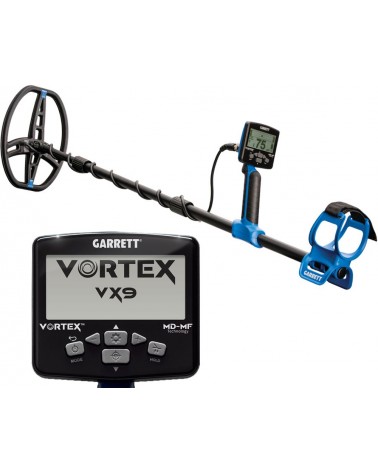

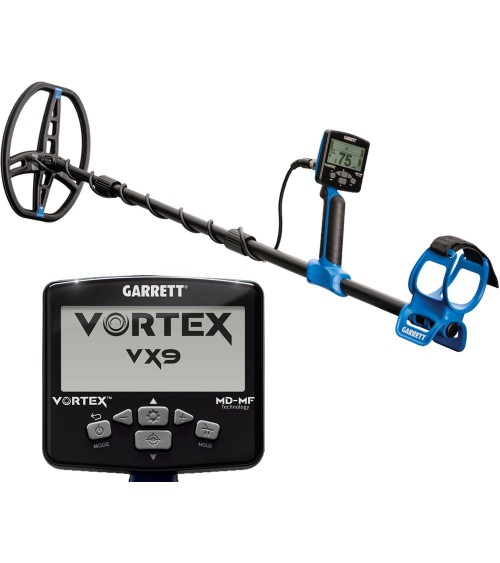

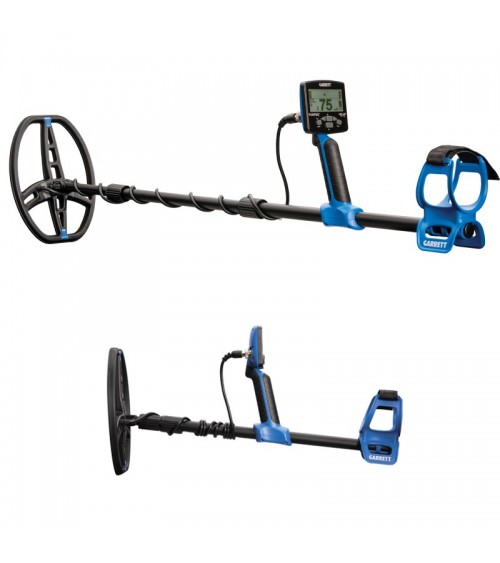

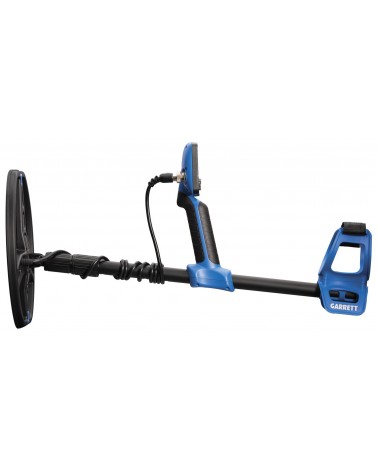

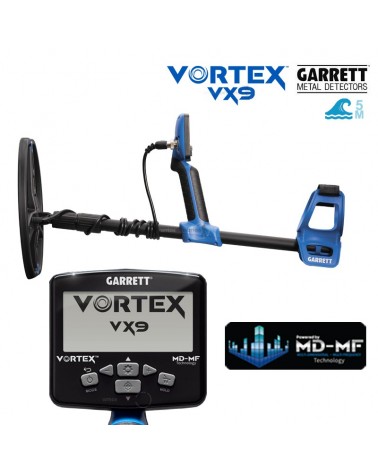

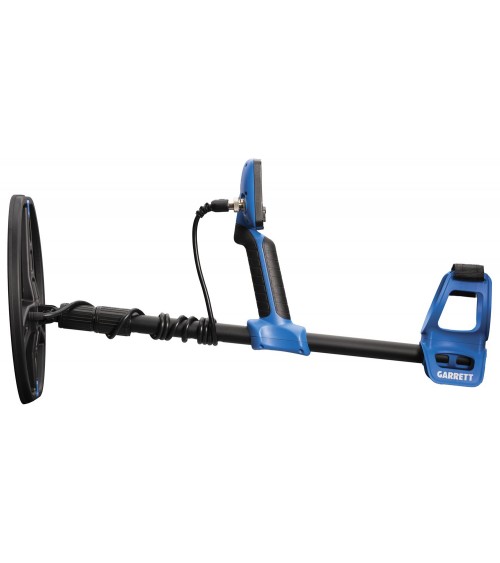

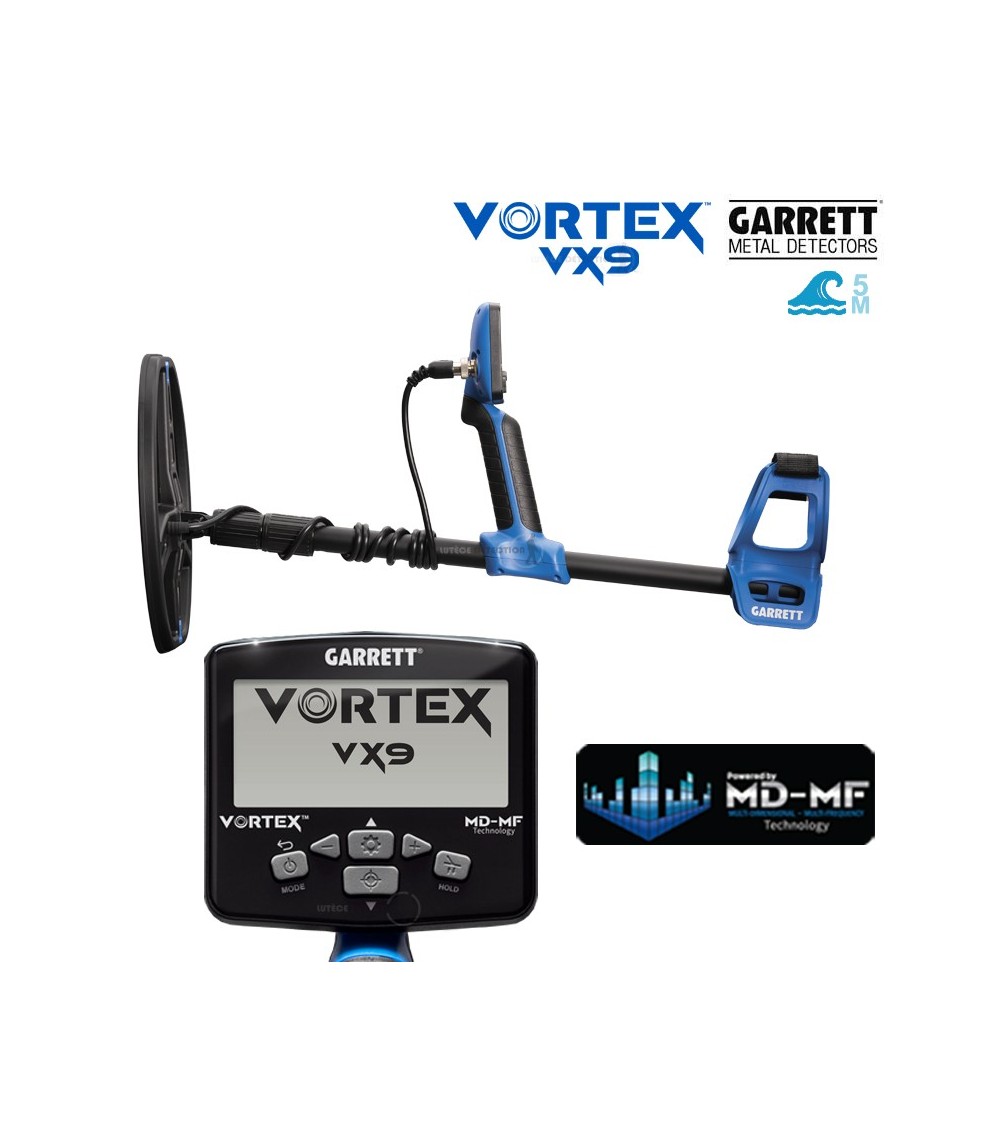

Garrett Vortex VX9

Announcement Vortex VX9™ | Fast, with MD-MF and three-stage object display!

The professional Vortex model VX9 has even more power and a full, three-stage MD-MF object identification display (including two iron scales to detect the unpopular ferrous scrap). The VX9 also has multi, multi-salt and additional frequency selection options.

The FAST mode for impatient users and search areas with a high scrap content as well as the THIN COINS mode for searching fine, less conductive coins such as hammered silver and thin gold coins make the VX9 a metal detector with ingenious selectivity properties and remarkable material recognition.

Buy the VORTEX VX9 as a ...

Metal detector for advanced and professional users

Metal detector for beginners in the standard search program

Special features of the VX9™

The same capabilities as the VX7, but that's not all ...

7 Frequency settings

7 search modes

Complete three-stage MD-MF target ID display

Special mode for small targets "Thin coins"

Special "Fast" mode

This is what the expert says "New ways in detection with the upgrade functionality! As always, super Garrett quality with robust devices for deep and differentiated probing."

Novelty Upgradeability

The revolutionary feature of the Garrett Vortex series is its upgradeability. For the first time, you can upgrade your metal detector to a higher model up to VX9 through software updates. This means that you can turn your VX5 into a VX7 or even a VX9 without having to buy a completely new detector. This innovative feature ensures that your device always remains at the cutting edge of technology and that you can benefit from the latest functions.

VX9 waterproof up to 5 meters

The Garrett Vortex VX9 is fully waterproof to 5 meters. Designed for dusty, humid or wet environments. For underwater / water use, we recommend underwater headphones.

Select one of the 7 search programs and start sounding!

The VX9 extends the range even further with seven modes, including modes for thin coins and beach conditions, making it ideal for different conditions. Search modes are Zero, Standard, US Coin, Thin Coin, Beach, Custom and Fast.

Target ID scales

The Target ID scales are one of the main features that characterize this series. The VX9 goes even further than the VX7 and VX5 and offers a three-stage Target ID scale that enables even more precise identification.

MD-MF frequencies

Frequencies play a decisive role in the detection of metals in different types of soil. The VX9 adopts these seven frequencies and thus offers the highest adaptability and precision.

Variable response speeds and wireless connection

The variable reaction speed is another highlight of the Vortex series. The VX9 offers three setting options. This function enables finer adjustment to the speed and increases the accuracy of the search. All models from the VX7 onwards are wireless enabled, allowing for convenient and interference-free use. This is particularly useful for professional treasure hunters who spend long periods of time in the field.

Additional setting options

The Vortex series also offers functions such as sensitivity settings, a variable number of ID tones and iron volume. With the VX9, these setting options are fully integrated and contribute to a comprehensive search experience.

Z-Lynk™ wireless technology

The Z-Lynk wireless technology offers sound transmission with hardly any delay (maximum delay of 17 ms). No cable and no interference with other wireless headphones.

Setting options

Multifrequencies (Multi, Multi Salt) and 5 kHz, 9 kHz, 13 kHz, 18 kHz, 25 kHz

Search modes Zero, Standard, US Coins, Thin Coins, Custom, Beach, Fast

Response time 3 levels adjustable

Z-Lynk technology

Iron volume

Pinpointen

Soil leveling

Adjustable volume

Display illuminated

Detector length adjustable from 63 cm to 144 cm

Headphone connection for 2-pin connection for the MS-2 or waterproof headphones from Garrett

Wireless headphones - Z-Lynk wireless technology built-in - can be paired with MS-3 wireless headphones and AT ProPointer Z-Lynk

Technical data

Multifrequencies (Multi, Multi Salt) and 5 kHz, 9 kHz, 13 kHz, 18 kHz, 25 kHz

waterproof up to 5 meters

Z-Lynk technology

improved sensitivity / depth

5 tones

Frequency changer

Detector length from 63 cm to 144 cm

Weight 1.38 kg

Standard coil 21.5 × 28 cm (8.5" × 11") DD Raider for Vortex

USB-C port

Headphone connection for 2-pin connection for the MS-2 or waterproof headphones from Garrett

Wireless headphones - Z-Lynk wireless technology built-in - can be paired with MS-3 wireless headphones and AT ProPointer Z-Lynk

3-year guarantee

Scope of delivery VX9

Vortex VX9 electronic unit

21.5 × 28 cm (8.5" × 11") DD Raider

Coil protection

Probe rods with coil fastening set

USB-C charging cable

Quick start guide
