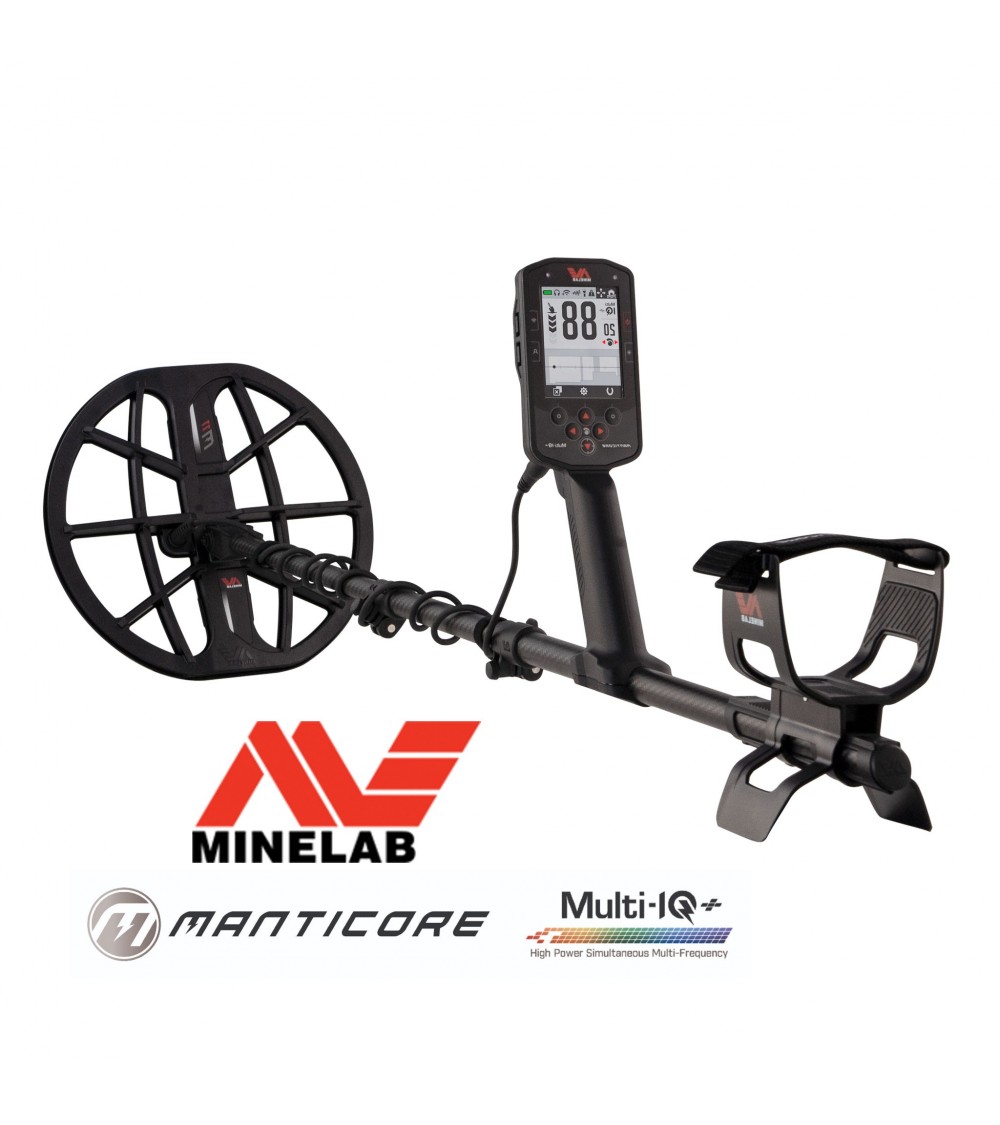

Minelab Manticore

                       Manticore High Power Metal Detector

Our most powerful detector yet, Manticore finds targets faster, more clearly, and in even the most challenging environments. With impressive capabilities and technologies, nothing will go undetected. More effective than even the most high-end models in the market, Manticore brings power, precision and accuracy to detecting in a way that wasn’t previously possible.

MULTI IQ+

Minelab’s revolutionary technology has 50% more power than traditional models and is the highest-powered simultaneous multi-frequency machine on the market.

FAST RESPONSE

Identify your targets quickly and confidently to efficiently sort between trash and treasure with exceptional target separation performance.

VERY POWERFUL 2D IDENTIFICATION OF TARGETS

Identify your targets with greater visual and audible target insights.

ENHANCED DISCRIMINATION

Exceptionally accurate target ID allows you to accept or reject finds quickly and confidently .

WIRELESS AUDIO

Clearly detect with audio controls set specifically for you in order to identify targets confidently, reduce noise and identify trash.

ULTIMATE SEARCH MODES

Over 10+ preset search modes allow you to set the stage for success, with the ability to customize up to 10 unique modes tailored to your specific needs.

UNRIVALLED CONSTRUCTION & WATERPROOF

Powerful yet lightweight, Manticore weighs only 1.3 kg (2.9 lbs.) and includes a three-piece, compact Carbon-Fibre shaft system. Waterproof up to 16 ft (5 m).

INTUITIVE CONTROL

The large LCD panel allows for easy viewing and clear navigation control.

BOOSTED EMI IMMUNITY

In challenging environments, improved EMI rejection uses higher sensitivity to isolate targets.

CHOICE OF COILS

Comes with the M11 (11" Round Double-D coil) and choose from

M8 (8"x5.5" Elliptical Double-D) and M15 (15"x12" Elliptical Double-D) coils.

LIGHTING & VIBRATION

Detect even when the sun goes down with features such as Control Box Flashlight, Display Backlight with Auto Adjust, Backlit Keypad and Handgrip Vibration.

CLEAR AUDIO

Built in external speaker allows for crystal-clear audio and comes with Low Latency Wireless Headphones.

BUILT TO LAST

A three-year warranty with software upgrade capability allows detection far into the future.

Specifications

Display: Color LCD

Applications: Land , Shallow water , Underwater , Freshwater beach , Saltwater beach , Highly mineralized soils

Kind: Digital , Motion

Technology: Simultaneous multi-frequency

Search frequency: 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz and Multi-IQ +

Search coil: 28 cm (11") waterproof DD search coil

Weight: 1.3 kg

Linkage: Telescopic carbon rods adjustable by cam locks from 63 - 144 cm

Watertightness: Waterproof up to 1 m, Waterproof up to 2 m, Waterproof up to 3 m, Waterproof up to 5 m, Control unit splashproof, Search coil waterproof

Headphone: 3.5mm headphone jack

Type and number of batteries: Li-Ion Battery

Battery Autonomy : Approx. 9 hours

Depth range small objects (CHF coin): Approx. 50 cm

Depth range large objects: Approx. 180 cm

Number of search modes: 5 all-terrain, 4 beach and 1 goldfield program

Service: 10 pushbuttons

Built-in wireless module: Yes, Low Latency Bluetooth Module

Target group: Advanced, Professionals, Gold Seekers, Treasure Hunters

Battery level readable: Yes

Depth range readable: Yes, in 5 levels

Soil mineralization readable: No

Ground balancing: Automatic and manual ground balancing and tracking

Sensitivity setting: 35 sensitivity levels

Pinpoint function: Yes

Discrimination against undesirable objects: Yes

Notch filter: Yes

Notch Volume: Yes

Object identification by audio sounds: Yes, 1, 2 or 5 tones

Object identification readable: Yes, in 2D, very accurate

Conductance display: Yes, 1 - 99

Responsiveness: Very fast, eight-stage adjustable

Volume: Yes, 25 levels

Display illumination: Yes, manually in 10 steps or automatically with the help of a light sensor

Key illumination: Yes

Search coil illumination: Yes, adjustable to 3 different brightness levels

Vibration as a signal: Yes

Online Software Update: Yes

Frequency changer: Yes, automatically, continuously automatically and manually (-9 to +9)

Threshold (background tone): Yes, 0 to 25

Multilingual operating software: Yes

Scope of delivery

Manticore Metal Detector

M11 Search Coil (11" Round Double D Coil)

Low Latency Wireless Headphones

Headphone cable

USB cable

Charging cable

Operating instructions

3 years manufacturer's warranty
