The fifth Deus- (R) Evolution is simply fun because the Deus remains simple and logical to operate. Simply select one of the 10 preset factory programs and the fun begins. The Deus is also suitable for beginners because of its preset factory programs - at the same time, with its expert menus, it offers the experienced probe user a unique performance and enormous flexibility.

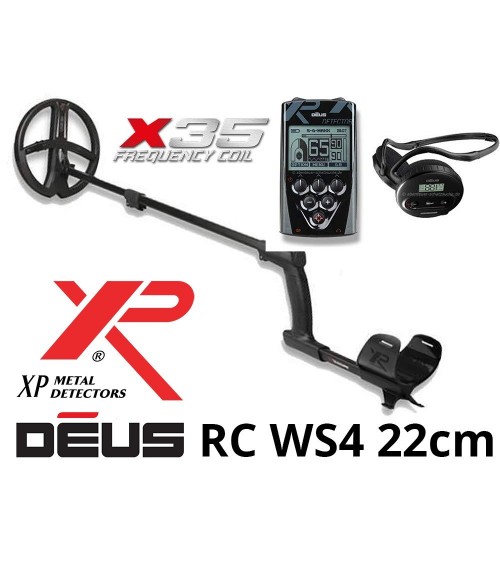

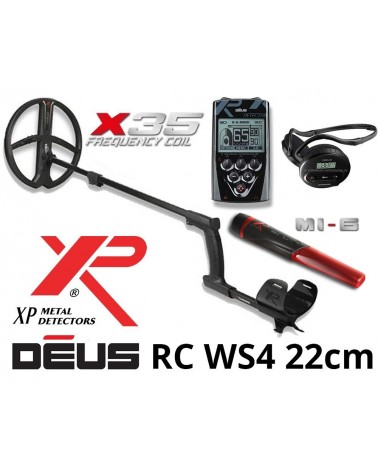

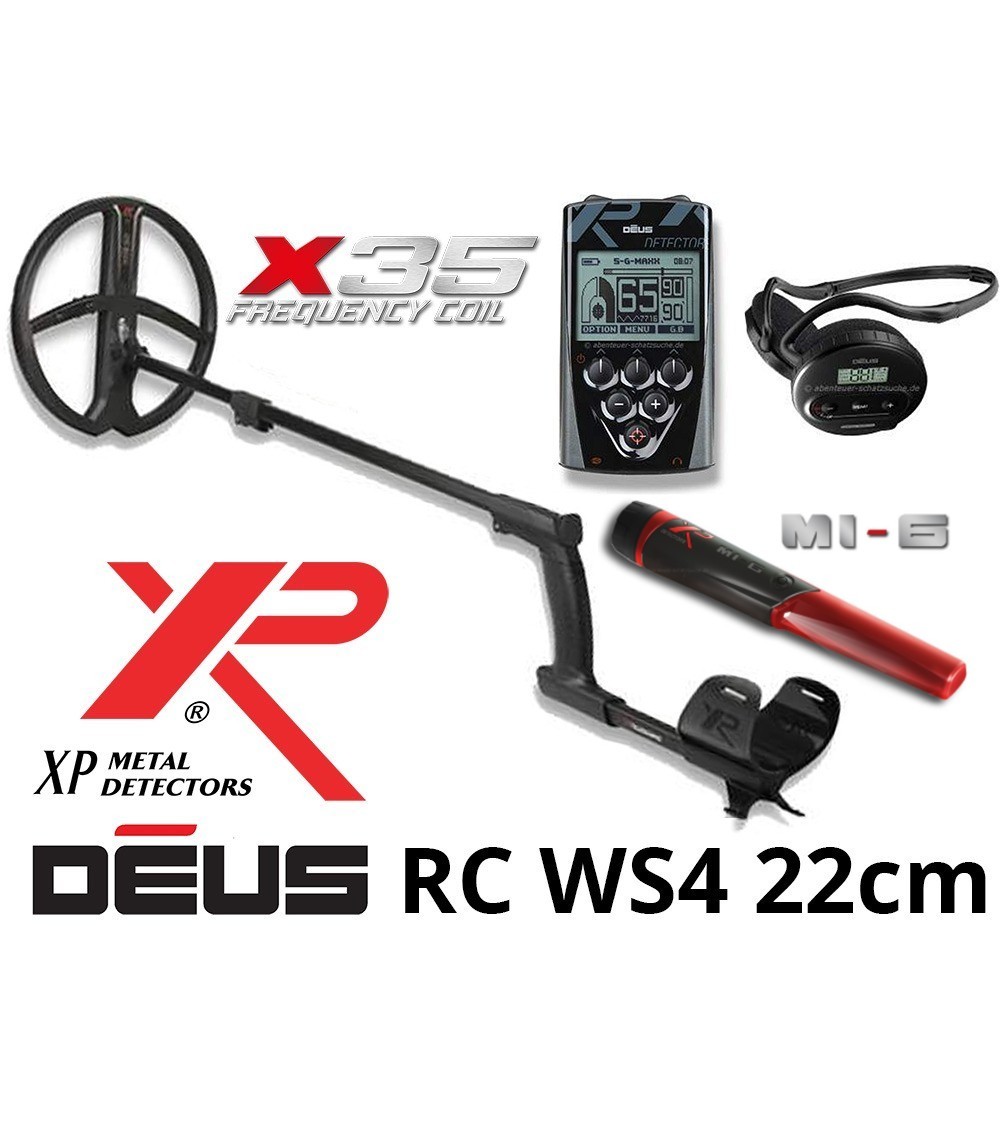

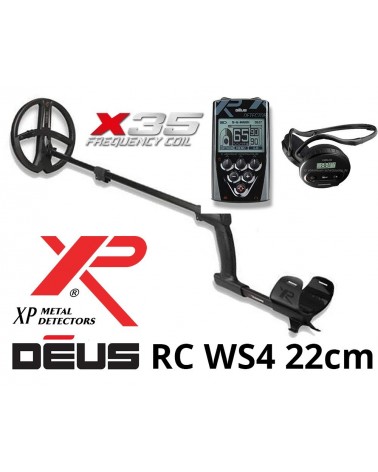

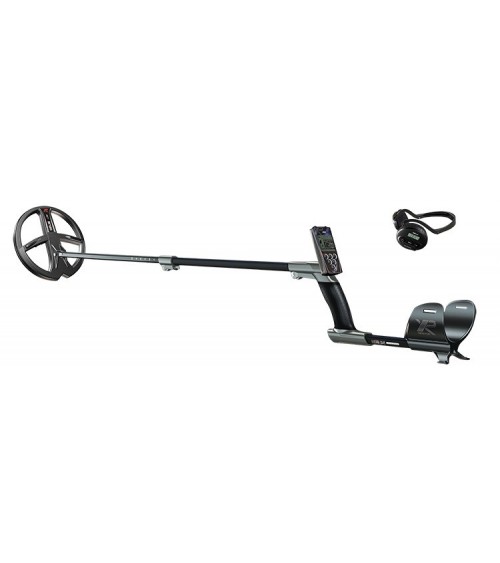

In this version, the XP DEUS detector is equipped with the disc 22 CM X 35 + RC + WS4 wireless headset and Pin-Pointer MI-6
The ten preset factory programs of the contain practically all XP detectors and give the user almost unlimited application possibilities.
- Deus Basic
- Goldmaxx Power
- Deus Fast
- Pitch
- G-Maxx
- Deep
- Wet Beach
- Dry Beach
- Hot
- Gold field
+ 8 storable user programs!
The DEUS is also a highly innovative detector design paired with high-end technology. Absolutely unique performance and comfort! The precision in the metal differentiation and the sensationally low weight set the upper limit among the high-end detectors!

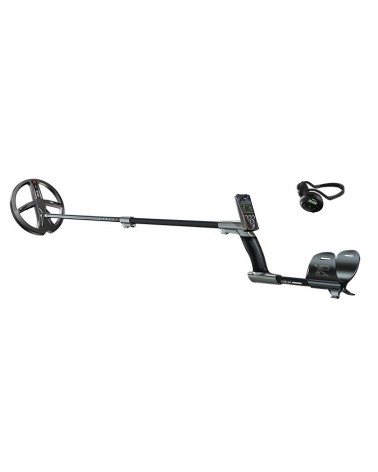

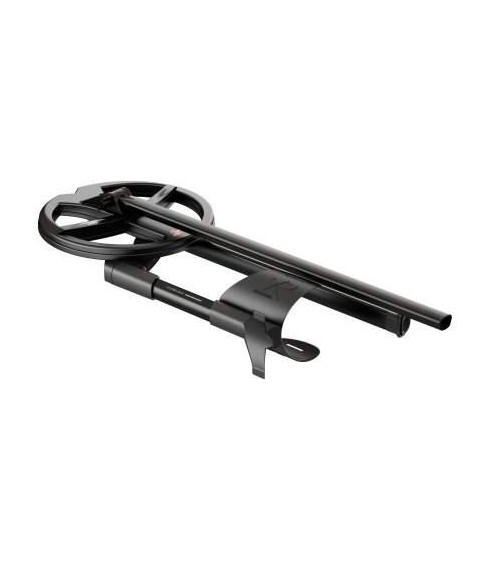

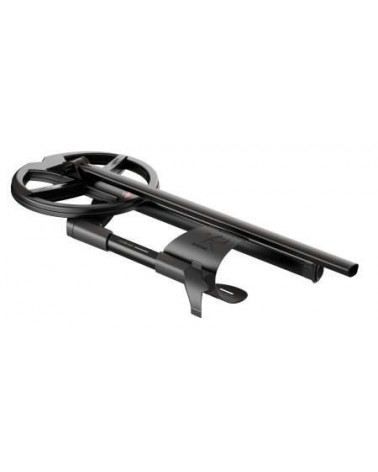

The assembly and disassembly of the detector only takes 5 seconds! The coil can be exchanged in no time! The new patented linkage swivels superbly, comparatively much better than straight telescopic linkages. An ergonomically shaped rubber handle lies comfortably in the hand with a secure grip, a detector cannot be in the hand better!
The unique and patented system essentially contains 3 components: The new 28cm double-D X35 search coil with integrated miniature electronics, which can be operated with a remote control on the S telescopic rod and a second remote control in the wireless headphones, completely wirelessly, via digital radio in real time.
The high search performance and reaction speed, the precision in metal differentiation and the sensationally low weight set a new upper limit among high-end detectors!
The 28cm double D X35 search coil in the DEUS system contains the essential components of signal processing, which no longer have to be transmitted via a cable connection. A miniature digital circuit is integrated in the receiving coil, which digitizes and analyzes the located signals directly "on site". As a result, the Deus achieves a uniquely fast response speed, while the quality of the original processing is significantly improved. The signals are transmitted in real time via digital radio to the remote control and the headphones.

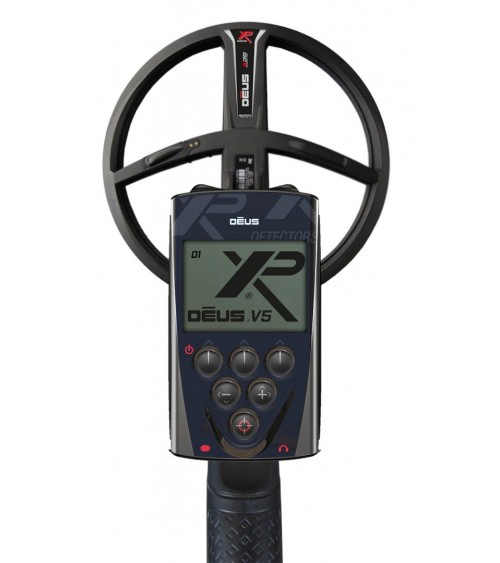

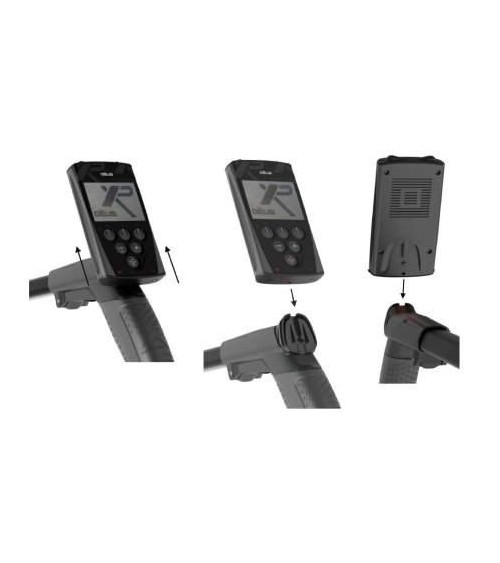

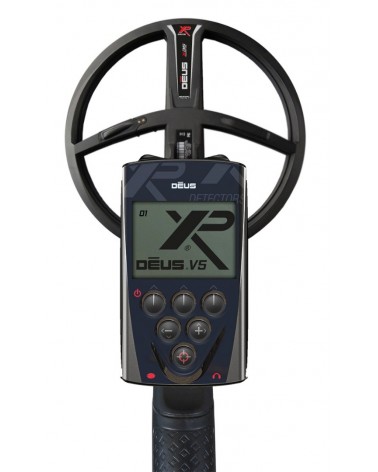

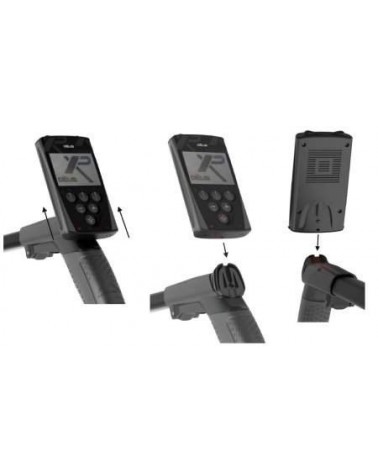

The remote control is detachable and as small as a cell phone! Metal detection couldn't be more flexible!

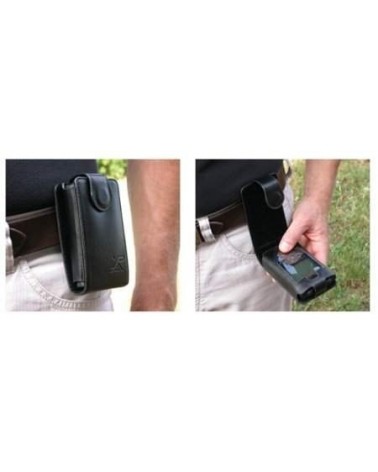

The remote control can also be worn on a belt. Everything absolutely wireless!
"The Deus" - that's actually 2 detectors! On the one hand, the electronics in the search coil can be operated with the remote control. When searching in mud, rain, etc., the remote control can stay at home or in the car. The headphones have all the essential basic functions to be able to operate the Deus alone:
- Discrimination (metal differentiation) + expert menu for response time
- Sensitivity (search performance) + expert menu for TX power / transmission power
- Ground balance + expert menu for tracking
- Frequency switching + expert menu with a total of 35 frequencies in the ranges from 3.7-4.4 / 7.1 - 8.4 / 10.5 - 12.4 / 15.2 - 17.8 / 23.5 - 27 , 7 kHz
- Tone distinction (1-, 2-, 3-, -4, -5-tones, multi-tone and pitch) + expert menu for iron volume
- Headphone volume + expert menu for audio response
- Coil selection
- Program selection

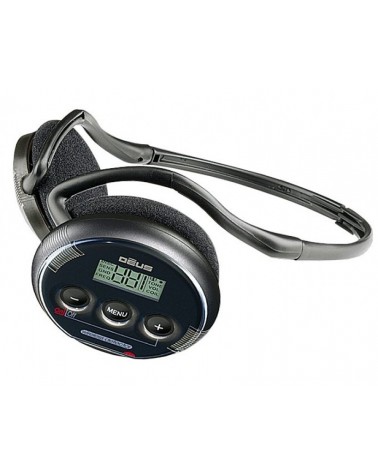

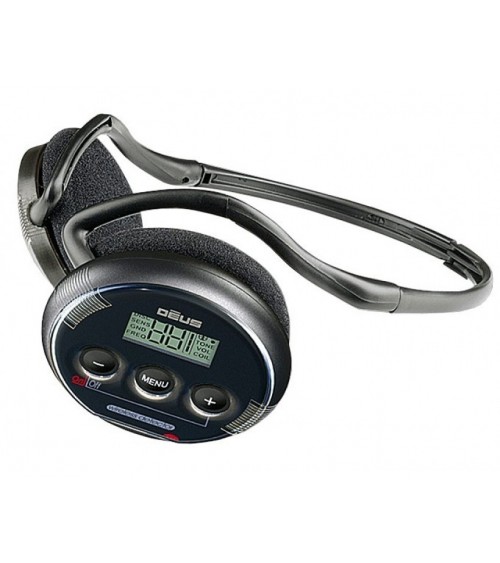

The Deus' rainproof wireless headphones. High wearing comfort and brilliant sound. The headphone electronics can be removed from the headphone hanger! The advantages are optimally comfortable operation and easy replacement of the bracket if it is dirty.
Technical specifications:
Settings
- Switchable working frequencies: 35 frequencies in the ranges from 3.7-4.4 / 7.1 - 8.4 / 10.5 - 12.4 / 15.2 - 17.8 / 23.5 - 27.7 kHz
- BOOST mode can be activated in the frequency range 3.7 - 4.4 kHz
- Sensitivity: 99 levels
- Transmission power: 3 levels available in all frequency ranges (can be reduced, for example, in the event of interference, power lines, etc. and increased for depth-first search)
- Reactivity: 6 levels (the fastest metal detector in the world)
- Iron volume: adjustable from 0 - 6 (iron can also be faded out without loss of depth - position zero)
- Tone displays: 1, 2, 3, 4, 5, multi-tone and adjustable pitch
- 7-fold amplification of the signal depth (audio response)
- Visual metal differentiation (iron / non-ferrous and precious metals)
- Visual depth indicator
- Ground balance: panning (automatic comparison takes place when panning), pumping, manual and beach
- Notch filter: Notch and Multi Notch (practical e.g. for beach search or on battlefields)
- Operating modes: Motion (silent without floating tone) and No Motion with / without floating tone
- Pinpointing: audio and visual (with crosshairs in the display)
- Discrimination: audio and visual (optical metal distinction: iron & non-ferrous precious metals)
- Iron discrimination levels: 99, wide range discrimination with optimal iron detection
- Discrimination levels: From -6.4 to 99
- Factory programs: 10 + 8 storable user programs
Generally
- Volume control on the headphones
- Display resolution: 8192 pixels
- Lighting with low power consumption, adjustable contrast
- Software update possible free of charge if new Deus versions are available
- the wireless headphones are absolutely rainproof and can also be used as a control unit
- Double-D X35 search coil made of carbon fiber - waterproof - wireless

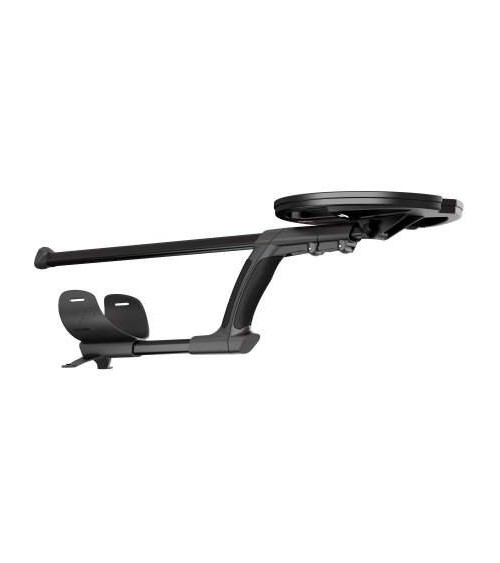

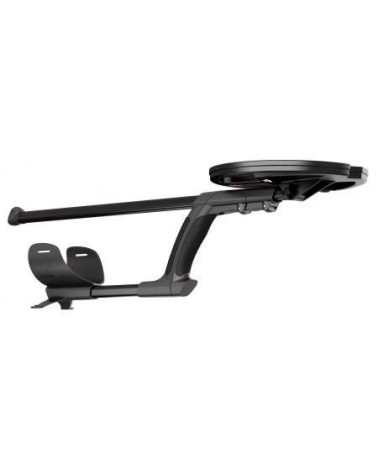

- Frame: Fully telescopic, aluminum carbon fiber mix, S-shape
- Lithium polymer batteries of the latest generation, miniature format
- Battery charge level indicator for remote control, wireless headphones and search coil
- Battery capacity per charge, remote control 19 hours, headphones 22 hours
- Approx. Battery capacity coil with transmission power level 1: 25-18 kHz = 25 hours / 12 kHz = 22 hours / 8 kHz = 18 hours / 4 kHz = 12 hours.
- Battery capacity coil with transmission power level 2 to 3: 25-18 kHz = 21 hours, 12 kHz = 19 hours, 8 kHz = 14 hours, 4 kHz = 12 hours with BOOST 6 hours.
- 10 - 40% higher battery capacity + improved location stability on all floors + improved sensitivity to small parts
- Fast charger for simultaneous charging of remote control, coil and headphones
- Charging times: search coil 150 minutes, headphones and remote control 180 minutes
- Sensational total weight on the boom: only 900 g (without remote control mounted on the boom)
- Linkage 480 g, remote control with battery 100 g, headphones WS4 86g, headphones model WS5 (optional) 255g
- 22cm double-D X35 spool approx. 480 g with spool protection, waterproof
- S-telescopic poles: retracted 58cm, extended 130cm
- Operating temperatures: -5 ° C to 40 ° C
- many special settings possible, new, more efficient soil filter (expert)
- Switch on and start immediately! Also suitable for beginners!
- Despite the many functions, it is uniquely easy to use.
Details:
- Wireless digital radio transmission on 36 multi-frequency channels
- Remote control in space-saving pocket size can be carried on the belt - is held by means of a click holder
- Graphic display with economical background lighting, contrast settings and intuitive display
- Wireless headphones with transport box, light & foldable, with display and the main menu functions
- USB port for downloading new XP software and upgrades
- Compact rechargeable lithium polymer batteries (7gr.!)
- Fast intelligent charger charges remote control, coil and headphones at the same time
- Permanent display of the program, time, battery status, soil value, performance curve, conductance, etc.
- Miniature emergency chargers, car chargers, solar chargers with flashlight function and much more are available as accessories
Wireless headphones:
- With its own system control and display
- rainproof
- Lightweight & foldable (receiver can be removed from the carrier bracket)
- Setting options for the Deus basic functions
- Factory preset search programs + 8 storable user programs
- Lithium battery and charger
- Including ABS protective box for transport and storage
- From V5 six basic settings with additional expert menus
Scope of delivery:
- XP DEUS X35 22 RC WS4 V5.2 complete set, latest version
- German software, latest version
- 22cm double-D X35 search coil, waterproof carbon search coil
- Remote control, latest version
- Wireless headphones WS4 in protective box, latest version
- Coil protection
- Fast mains charger with charging cable
- Charging clip (for charging the coil)
- Linkage bracket for remote control

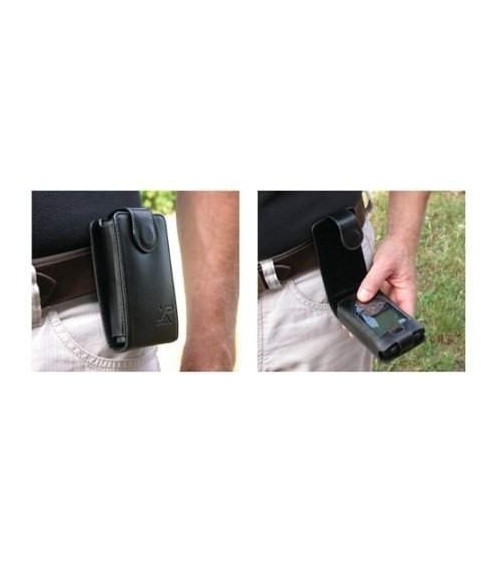

- Belt pouch with viewing window and neodymium magnet closure
- Velcro tape for a secure hold in the armrest
- Coil screw set
- detailed french operating instructions
- 2 year warranty
- and an additional 3-year manufacturer's guarantee
- Pin-Pointer MI-6
