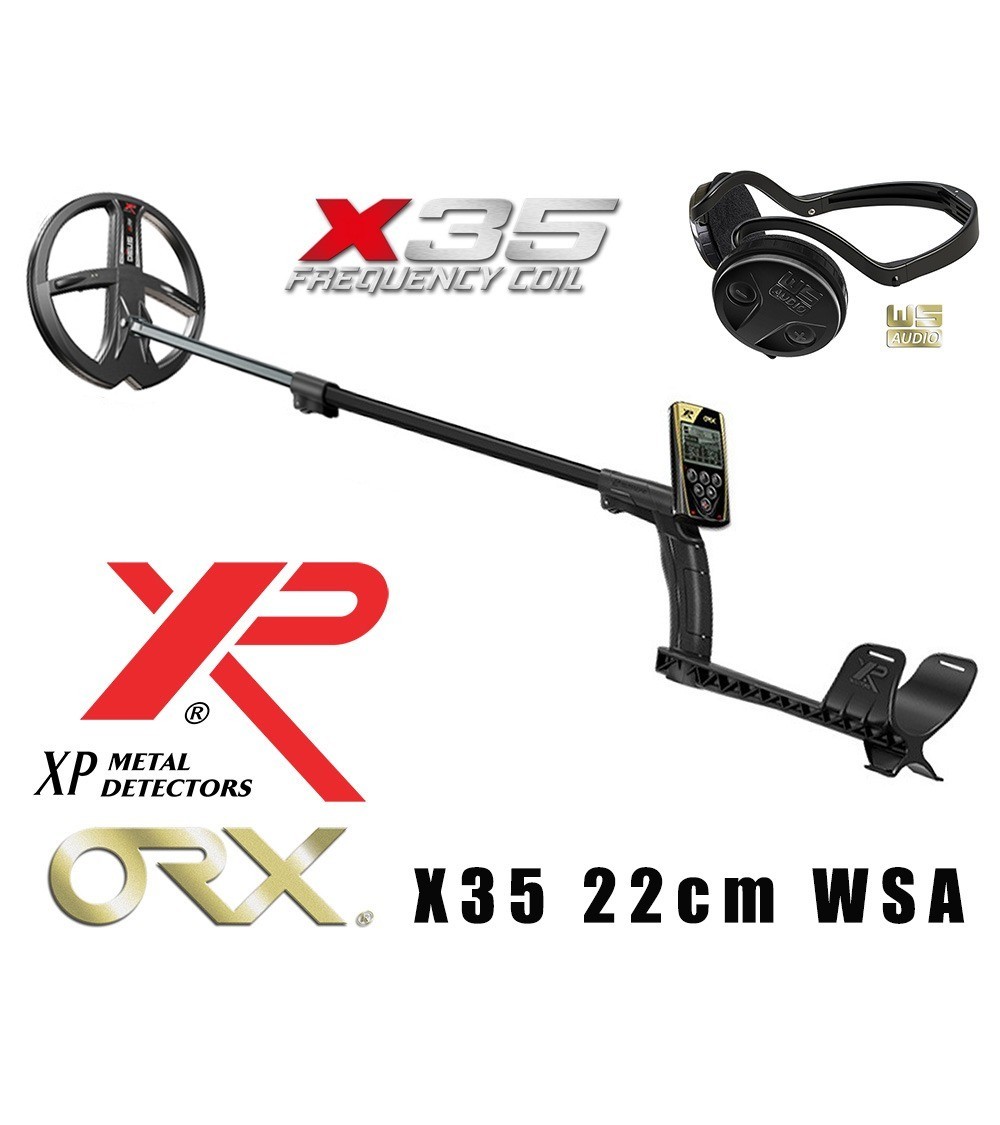

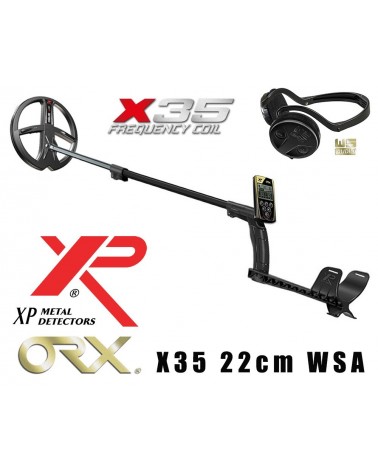

XP ORX X35 22 metal detector with 22cm double-D search coil + WS Audio

The new XP detector ORX takes over some of the core parts of its big brother, the XP Deus, and comes with a new user interface. The developers of this excellent detector focused on simple operation, high search performance and the unique, low weight. The user interface looks very tidy, is clearly and logically arranged so that it can be operated almost instinctively. With its sensational 770g, the ORX is the lightest detector in its class on the detector market! Thanks to its struts on the upper part of the frame and the middle frame made of aviation high-tech aluminum, the ORX is also extremely robust.

The small parts sensitivity on targets such as coins / relics / gold also convince the professional viewfinder. The fast response times also remain with the X35 coil and guarantee the best possible separation of finds in the case of iron-contaminated soils, as they are often found in old settlement sites, and offer correspondingly high find rates - even where other detectors exit.

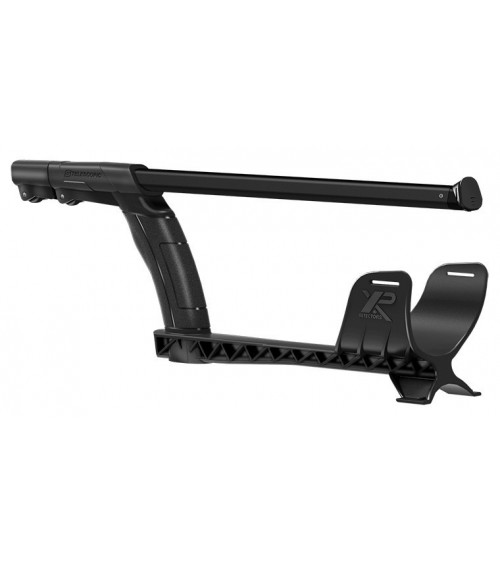

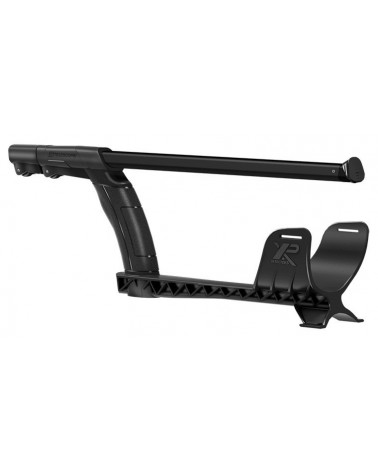

Ultralight and robust - the new S-telescopic linkage LITE. The S-shape of the boom makes swiveling particularly easy. The XP ORX can be assembled and disassembled in seconds using quick-release fasteners.

The ORX is a completely wireless detector with a patented radio connection to the search coil. The signals are evaluated directly in the search coil, which results in a significantly better processing quality of the signals than is possible with other conventional detectors. The new receiver wireless headphone system (optionally available) is designed as a convenient neckband headphone. It lies lightly on the ears, the bracket behind the neck prevents it from slipping when digging. The XP Pinpointer MI-6 can be integrated into the ORX. The digital shielding between radio headphones and MI-6 pin pointer (optionally available) prevents both devices from interfering with each other.

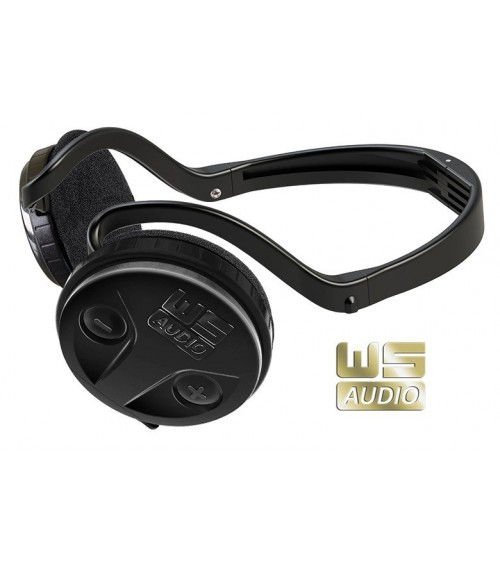

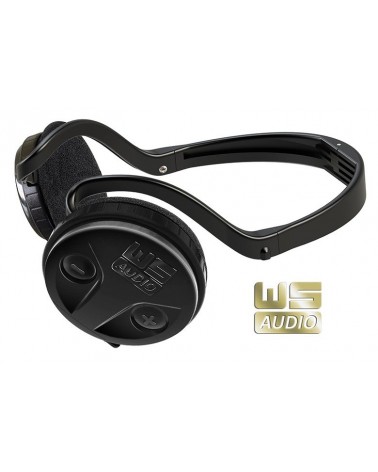

The newly designed WSA wireless headphone receiver with volume control (not compatible with XP Deus).

Characteristics:

• Ultra light and robust
• Top search performance
• Wireless, patented radio connection
• X35 double-D coil technology
• Radio search coil waterproof
• Wireless headphones WSA with adjustable volume, comfortable fit as neckband headphones
• Working frequencies with the supplied 22.5 / 28 / 28x34 double D X35 coil 4/8/12/25 kHz + crossovers
• Working frequencies with optional 22.5cm double D HF coil 15/28/54 kHz + crossovers
• Working frequencies with optional 24x13cm double D HF coil 15/28/80 kHz + crossovers
• Target ID Visual + Audio
• High sensitivity to small targets with high frequencies
• 4 factory programs: gold search (x2) - coins and relics (x2), + 2 storable user programs
• Fast and secure radio connection, the latest technology: coil - remote control - headphones - pin pointer MI-6.
• New compact, wireless headphone receiver “WS Audio®”
• Newly designed, ultra light Telescopic-S boom
• The lightest metal detector at the moment with a sensational weight of only 770g (remote control worn on the belt)

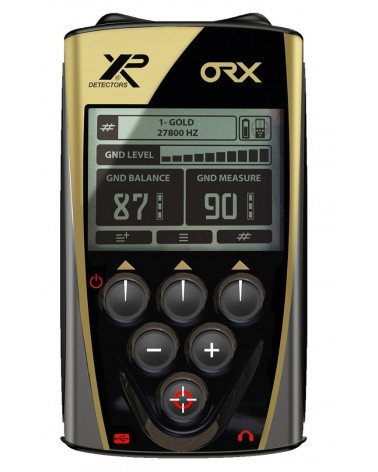

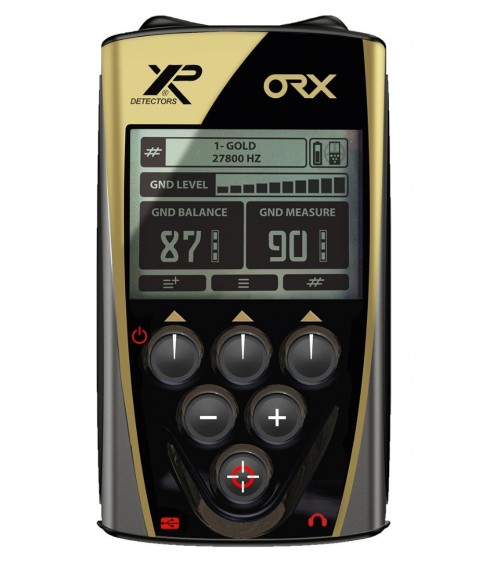

• Simple operation with new user-friendly interface / operation
• Wireless connection to the MI-6 pin pointer + extended setting options via the remote control
• Lithium batteries for about 20 hours search with one charge (may vary depending on the program / settings)
• Simply charge with a certified USB charger or via the computer (XP USB mains charger optional)
• Compatible with X35 spools (22, 28, 34 / 28cm). 22.5cm double D X35 coil included.
• Optionally available with the HF coils - 22cm (round) or with the 24 / 13cm (elliptical)
• Software update possible (on the remote control via a USB cable)
• Go Terrain Mobile App compatible (available in 2019)

Technical specifications:

• 22.5cm double D X35 search coil, radio, waterproof
• 99 levels of sensitivity
• 35 frequencies 4/8/12/25 kHz + crossovers
• 99 levels of discrimination + 5 levels of discrimination in IAR gold prospecting programs
• 20 threshold levels
• 4 selectable response times
• Iron tone with audio pitch (can be switched on and off)
• Soil adjustment manually from 60 - 90
• Ground Balance Automatic (Fast Balance - Fast Grab)
• Salt fashion for beach with ground suppression 00-25
• 4 factory programs + 2 storable user programs
• Target ID display with iron probability display
• Point location with target zoom
• Lithium polymer batteries without memory effect
• Battery capacity per charge of coil, approx. 20 - 28 hours, remote control approx. 19 hours, WSA radio headphones approx. 15 hours
• Display lighting
• WSA wireless headphone system with volume control
• S-telescopic linkage LITE
• Go Terrain app compatible (smartphone app coming in 2019)

Additional advanced - settings in connection with Pinpointer MI-6:

• MI-6 50 sens levels
• MI-6 audio tone adjustable from 120hz to 1582hz
• MI-6 2 audio modes pitch or pulse
• MI-6 3 factory programs + 1 storable user program
• Function: search for lost pin pointer (even if pin pointer is switched off)
• Target zoom screen
• MI-6 battery indicator

Scope of delivery:

• XP ORX X35 22 WSA complete set, latest version
• remote control
• Wireless headphones WSA
• 22.5cm double-D X35 search coil, 6m waterproof
• Coil protection
• Screw set for X35 coils
• S-telescopic linkage LITE
• Lithium polymer batteries
• USB charging cable
• 2 year warranty
