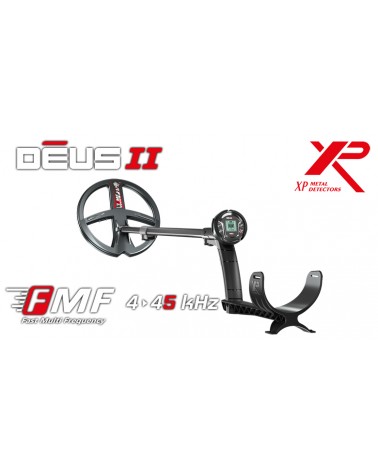

XP DEUS II-22FMF WS6 MASTER

XP pushes the boundaries once again by creating the first multifrequency wireless metal detector with unique features and performance.

XP DEUS II WS6 Master

- Powerful

- Light

- Ergonomic

- Economic

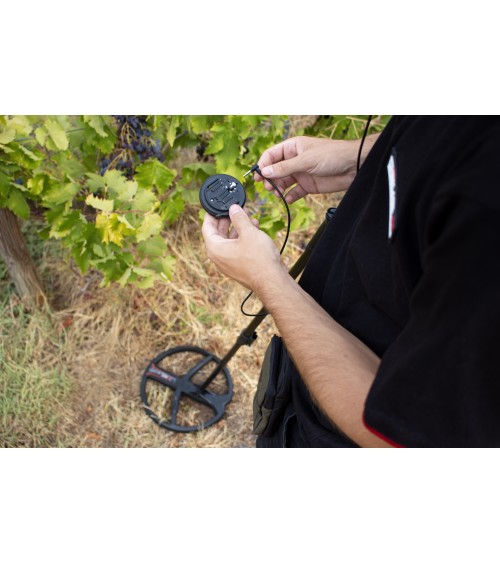

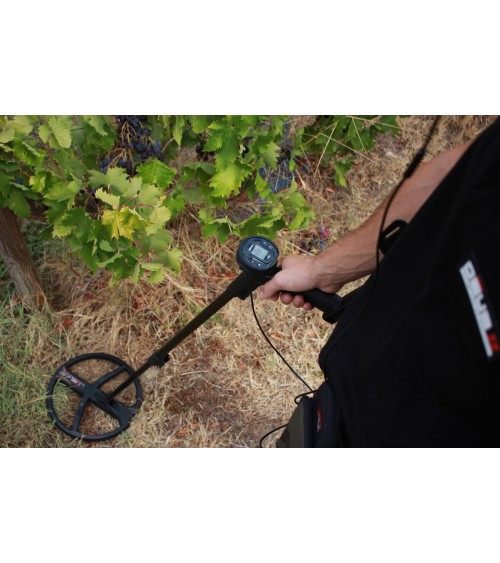

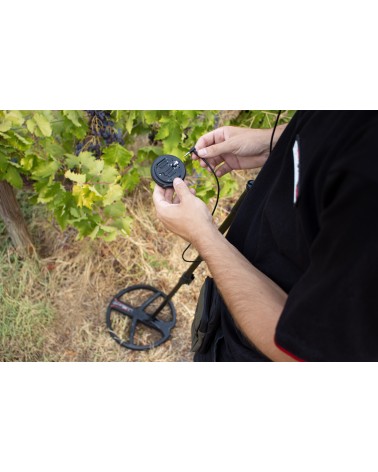

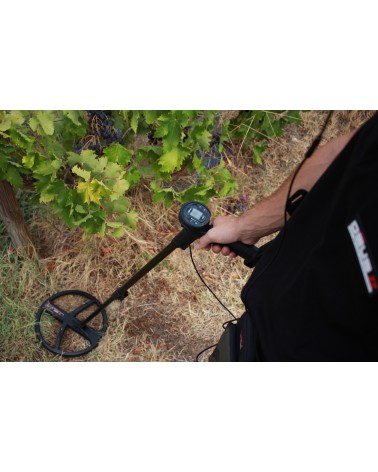

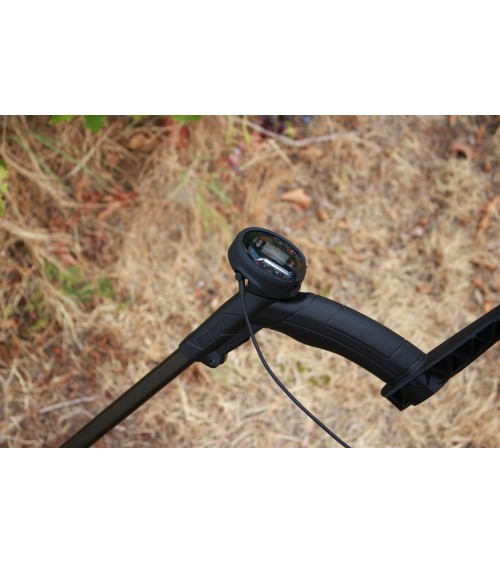

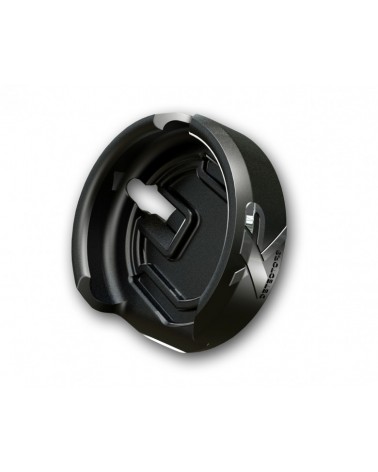

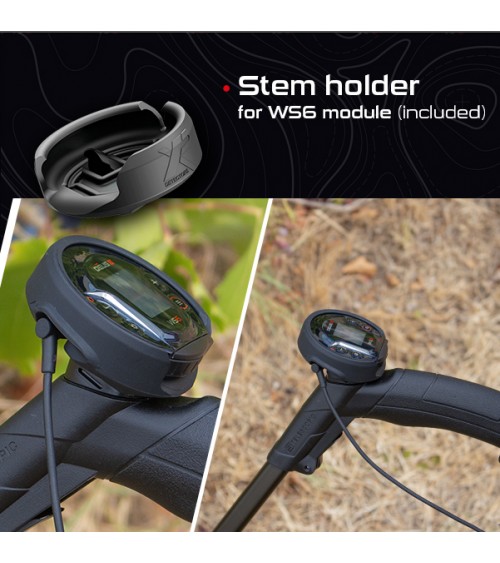

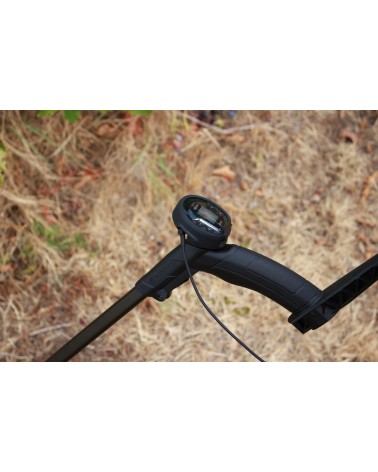

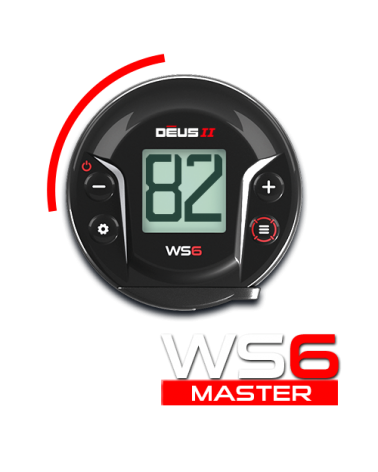

The WS6 module is not just a wireless audio headset. Without the Radio Control it can be an autonomous unit and connect to the search coil for an extremely ergonomic and light configuration. The WS6 module can be removed from the headband holder and mounted on the pole to take full advantage of the control screen, target display and ALL SETTINGS!

It is possible to supplement the equipment by adding the WSA II , WSA II XL wireless headphones or FX03 .

Once paired, the search coil, remote control, headphones and pinpointer communicate with each other wirelessly and without latency using the patented XP radio protocol system. This means that the target signals generated by the search coil are quickly transmitted to the headphones without any delay, giving the DEUS II unprecedented speed and accuracy. DEUS II performs extremely well in all terrains and conditions, both on land and at sea, thanks to FMF® (Fast Multi Frequency) technology.

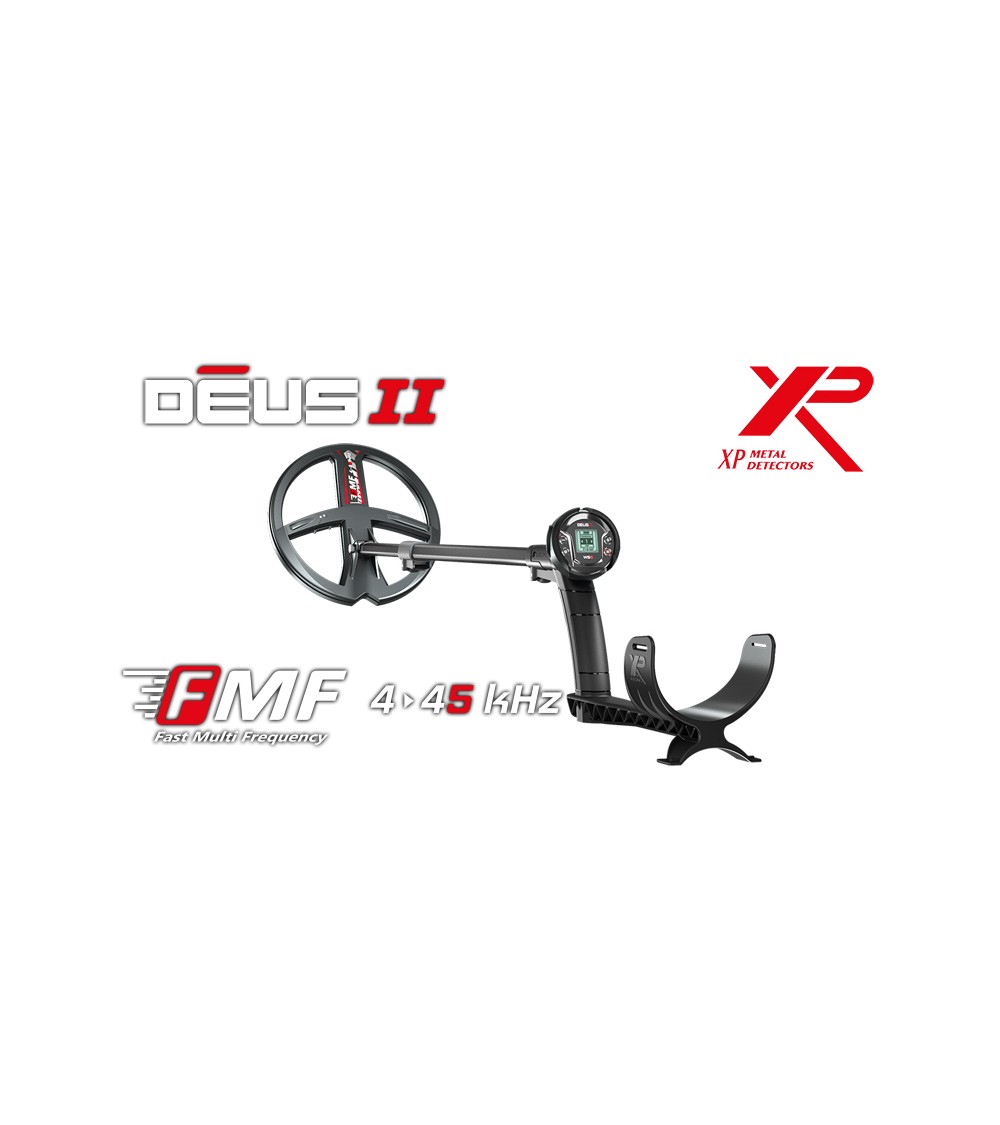

DEUS II the first multifrequency wireless metal detector with unique features and performance:

• FMF® Fast Multi Frequency: simultaneous multi-frequencies with fast target response.

Choose the Fast and Simultaneous Multi Frequency programs or choose from 49 single frequencies from 4 to 45 kHz.

• Ultra efficient.

• Totally wireless.

• Lightweight and ergonomic

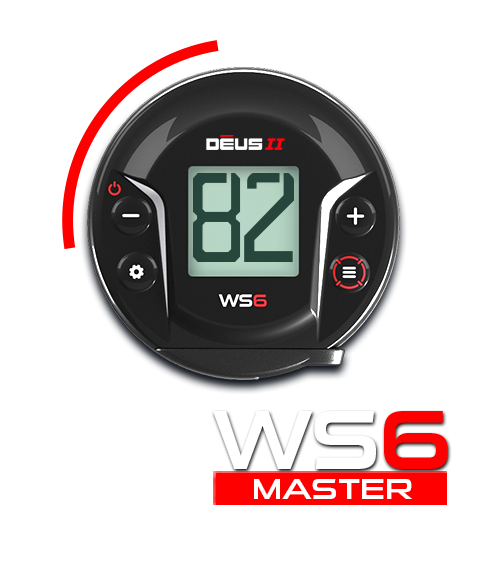

DEUS II: discover a unique territory • Audio headphones developed and produced in France by XP, specifically designed to meet the detection requirements: no audio latency, automatic On / Off, sophisticated processor with resonances and user-configurable equalizer through the Radio Control . • WS6 Wireless Headphone with extractable module that can become the master instead of the Radio Control (RC). • WS6 MASTER (+ WSA II): the WS6 headset has WS6 has a graphic screen and practically all the controls available on the RC. • Radio control that can be detached and positioned on the armband or on the belt for extreme lightness. • Ergonomic and telescopic S-rod, can be closed or extended in an instant, as there are no wires.

Radio DEUS II features

XP connection, digital wireless

36 automatic channels

Radio Frequency Specifications

Radio connection:

• Frequency from 2.40 to 2.48 GHz
• Power <2.11 dBm

Detection:

• Frequency from 3.9 to 135.7 KHz
• Power <72dBµA / m at 10m

DEUS II Features /  Settings

Detection frequencies: Simultaneous Multi Frequency (40dBµA / m at 10m) or 49 single frequencies at choice from 4 to 45 kHz.

Sensitivity: 99 levels

Sound type: different audio options, PWM, SQUARE, etc.

Audio Volume: 10 levels for each audio output

Reactivity: 9 levels (0 / 0.5 / 1 / 1.5 / 2 / 2.5 / 3/4/5)

Audio Response: 8 levels

Iron Volume: 6 levels

Multi Tone: 1, 2, 3, 4, 5, Pitch and Full Tones 1 and 2 + Espero mode

Ground Balance: Tracking, Grab, Manual

Multi-Notch: Yes, with adjustable window width

Non-motion mode - Pinpoint: Yes, with and without Autotune - Audio and video

Discrimination: Audio and visual rejection of the ferrous bottle cap on 5 levels / Silencer

Threshold: Adjustable Audio Threshold and Frequency

Equalizer: 4 bands configurable on each audio output

Programs: 12 factory + 12 user programs

Backlight: adjustable on 20 levels, very low power consumption

 DEUS II general characteristics

Display screen: 8192 pixels

Software update: yes, via USB / Internet connection (only with Radio Camndo)

Optional Wireless Headphones: WS6 (rainproof) - WSAII (rainproof) - WSAII XL (IP 68-1m)

 Wireless Disc: DD 22.5cm-9 '' / 28cm-11 '' (fully waterproof 20m - 66 ft)

Skitplate: yes

Rod: fully telescopic, “S” shaped, ergonomic

Batteries

• Headphones: 320 mAh

Battery level indicator: yes Remote control / Headphones / Plate / MI-6

Wireless remote control battery life: ~ 15 to 30 hours depending on the activated audio output

Wireless headphones battery life: ~ 15 hours WSAII / WS6

Wireless plate battery life: from 8 hours to 20 hours depending on the programs and frequencies

Battery charger: depending on the version, Input 100-220V 50 / 60Hz, Output 5V- 1A max

Car charger: optional

Bone Conduction Headphones: IP68 Waterproof - 20m - 66ft (Optional)

Charging time: ~ 3 hours

Total weight of detector with batteries: see product page for details on each version

Rod weight: 370g (S-Telescopic) - 305g (S-Telescopic lite)

Headphone weight with battery: WS6 82 g - WSA II 72 g - WSA II XL 250 g

Search Plates Weight: 22.5cm- 9 '' 345g - 28cm-11 '' 470g - 34x28cm-13''x11 '' 570g

Length of the closed rod: 58 cm

Extended rod length: 130cm

Operating temperature: from 0 to + 40 ° C

Maximum ambient temperature in charging: from 0 to + 40 ° C

Recommended storage temperature: 25 ° C

Waterproof search coil: IP 68 - 20m - 66 ft, * requires optional antenna when the search coil is submerged

Warranty: 5 years parts and labor. Batteries, chargers and connectors have a 2 year warranty

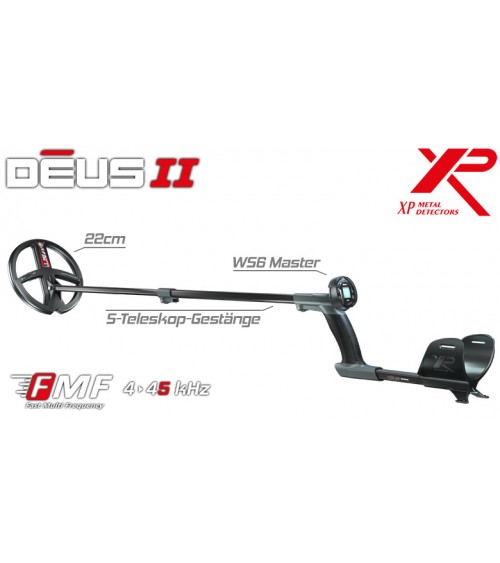

The XP DEUS II-22FMF WS6 MASTER comes with:

- WS6 helmet

- S-Telescopic Stemlite rod + rod bottom and hardware:

- XP FMF disk - 22 cm

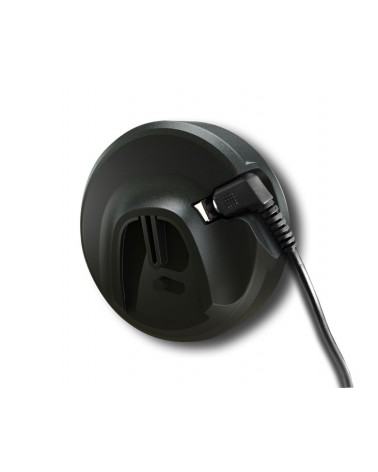

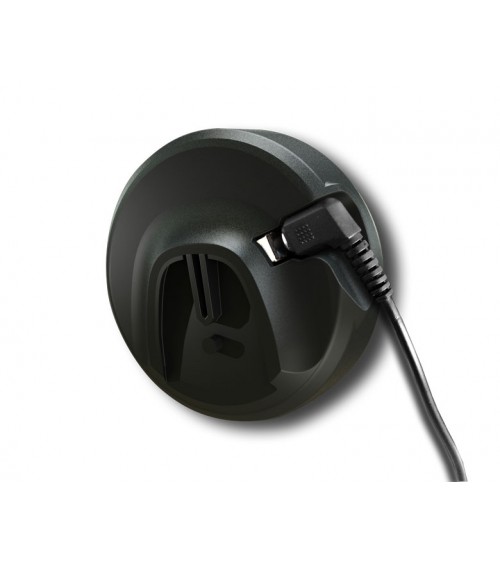

- 1 Charging cable and USB update

- 1 load clamp

- Notice
